Programmable Rapid Temperature Change Test Chamber
Brand: HBYIQI
Equipment Name: 408L Programmable Rapid Temperature Change Test Machine
Relevant standards or equivalent requirements:
It complies with the following tests in standards of GB, GJB, ISO,
IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS,
CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS,
ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS,
and standards of various countries:
Application:
The programmable rapid temperature change test chamber is a device
for simulating climatic environments. It is suitable for testing
the performance indicators of aerospace products, information and
electronic instruments, materials, electrical and electronic
products, and various electronic components under rapid temperature
changes. It can simulate in advance the chemical changes and
physical damage caused by different climate environments, and is an
essential test equipment for research and development, production,
and quality control.
Technical Parameter
| Model | HB-TRC-408L(ABC) | |
| Volume | 225L | |
| Inner Box Dimensions:cm | W80*D60*H85 | |
| Outer Box Dimensions:cm | W80*D185*H195cm | |
| Temperature Range | Type A: - 20°C ~ 150°C / Type B: - 40°C ~ 150°C / Type C: - 65°C ~
150°C | |
| Temperature Resolution | 0.01°C | |
| Temperature Fluctuation | ±0.5°C | |
| Temperature Uniformity | ±2°C | |
| Heating Rate | (3°C/min - 20°C/min, non - linear, no load/loaded, customizable) | |
| Cooling Rate | (3°C/min - 20°C/min, non - linear, no load/loaded, customizable) | |
Humidity Range(Optional)
| (10-98)%RH | |
| Humidity Resolution (Optional) | 0.01%RH | |
| Humidity Fluctuation (Optional) | 1%RH | |
| Humidity Uniformity (Optional) | +3.0%RH (>75%RH) +5.0%RH (<75%RH) | |
| Temperature and Humidity Control Range Diagram (Optional) |
This diagram shows the humidity range under standard atmospheric
pressure.
Note 1: Area "1" is the standard range of the test chamber, and no
additional components are required;
Areas "2" and "3" can be achieved by selecting one of the "Drying &
Dehumidification Function Components", and the specific component
type shall be configured according to the on - site conditions of
the buyer.
Note 2: All temperature and humidity areas in the above diagram are
applicable when the test piece is in an unpowered state or when it
is powered on but its heat output ≤ 400W!
Note 3: Temperature and humidity calibration points: ①20°C/40%RH;
②40°C/93%RH; ③80°C/98%RH) | |
| Control System | PLC balanced temperature and humidity programmable control system | |
| Language | Supports Chinese and English | |
| Refrigeration System | Adopts well - known compressors and well - known refrigeration
system accessories | |
| Heating System | Adopts nickel - chromium alloy electric heating wires | |
| Protection Devices | Leakage protection, short - circuit protection, over - temperature
protection, phase - loss protection, compressor overload and over -
heat protection, and fault alarm system. | |
| Shelves | 2 shelves are standard (more can be selected) | |
| Wiring Hole | Ø50mm/1 hole | |
| Voltage (V) | 380V | |
| Power (KW) | Subject to design | |
| Weight (kg) | To be confirmed before delivery | |
Detail Screen Display
- Control System Interface

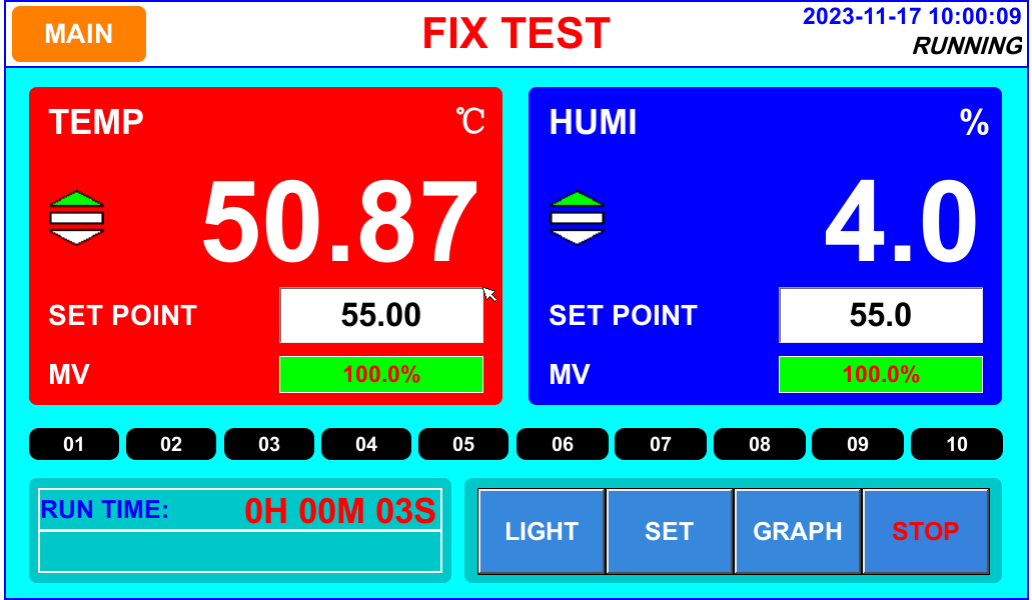

- Fixed Value Experiment
- Program Experiment
